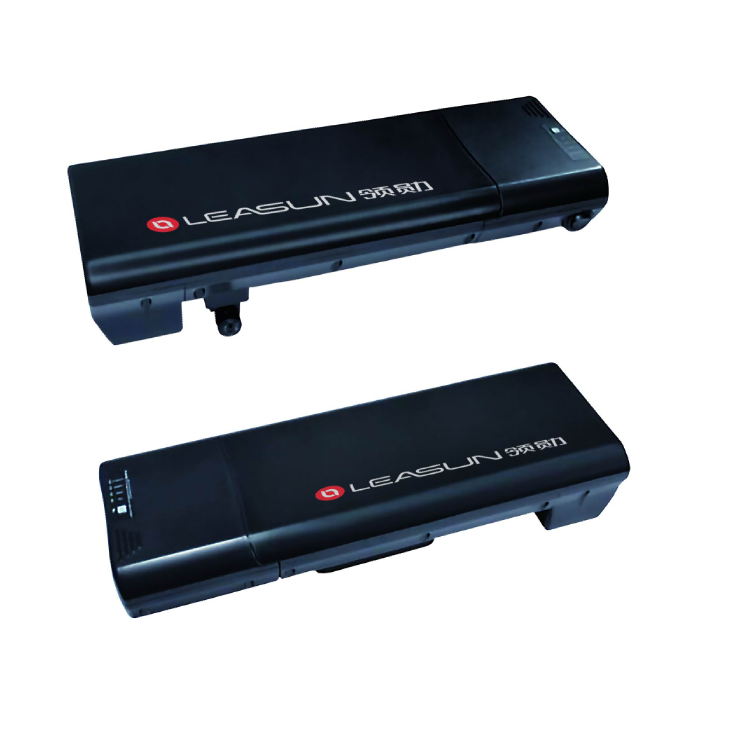

LX3610-Battery Pack 36V10Ah

LX3610-Battery Pack 36V10Ah

summary

parameter


Product Parameters

Material system

Ternary18650(2500mAh)

Nominal voltage

36V

Nominal capacity

10Ah

Number of cells in series and parallel

10S4P

Battery weight

2.5KG

Battery size

392.9*147.6*74.5mm

Constant current value of charger

3-5A

Charging cut-off voltage

42.5VDC

Discharge cut-off voltage

29VDC

Maximum continuous discharge current

9A

temperature

Working temperature: - 20 ~ 45 ℃, charging temperature: - 10 ~ 45 ℃, storage temperature: 0 ~ 45 ℃

Cycle life

600 cycles, capacity greater than 70%

Battery management system

Select hardware and software protection board

housing

sheet metal, V0 grade fireproof, IP65 grade waterproof
